INDUCTION HEATING MACHINE
Advanced Induction Heating Machine by AB Induction
An Induction Heating Machine is a cutting-edge technology used in the speedy, efficient, and precise heating of metals through electromagnetic induction. At AB Induction, we are leaders in innovative induction heating machines that can transform your heating processes for industrial and commercial applications.
Whether you’re an experienced engineer looking to optimize your processes or a curious beginner looking to learn about the technology, this in-depth guide will illuminate the amazing world of induction heating machines. Come with us as we reveal the secrets to achieving maximum efficiency and learn why this innovative technology is an essential tool for today’s industrial world. Prepare to revolutionize the way you approach heat generation and its uses!
What is an Induction Heating Machine?
An induction heating machine is a revolutionary device that utilizes electromagnetic induction to produce heat in conductive materials. Unlike conventional heating methods, induction heating stands out for its exceptional efficiency, accuracy, and control. It’s extensively used across industries such as automotive, aerospace, metallurgy, and manufacturing for crucial processes, including forging, brazing, annealing, and hardening.
Key Features of Our Induction Heating Systems
- High Efficiency: Experience rapid and consistent heating with our systems, which significantly lowers energy consumption and operational costs.
- Precision Control: Our advanced temperature control and monitoring guarantee precise heat treatment for the best results every time.
- Versatility: From small components to large industrial parts, our adaptable systems cater to a diverse range of applications.
- Durability: Designed for longevity, our machines are built with robust materials and the latest technology to ensure sustained performance.
Why Choose AB Induction?
- Maximized efficiency in induction heating systems.
- Customizable induction coil designs to fit your unique requirements.
- Substantial energy savings and reduced operational costs.
- Exact temperature control for uniform heating outcomes.
Choose AB Induction today and elevate your heating processes to new heights!
ABE-15A
ABE-15A induction heating machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering, and Soldering process for small components
We can produce customized Automation with a Heating Machine as per customer application and production requirements with PLC and CNC control.
| TECHNICAL CHARACTERISTICS AND FEATURES | |
|---|---|
| Model | ABE-15A/ABE-15AB |
| Input Voltage | 220V AC 50-60HZ Single Phase |
| Input Voltage Range | 180V-245V AC |
| Input Current | 32 Ampere |
| Input Watt | 8KW Max |
| Output Oscillation Frequency | 20-100KHZ |
| Output Oscillation Current During Heating Period | 200-600A |
| Output Oscillation Current During Retaing Period | 200-600A |
| Heating Time | 1-99 Sec |
| Retaining Time | 1-99 Sec |
| Cooling Time | 1-99 Sec |
| Duty cycle | >100%(35℃ room temperature) |
| Cooling Water Pressure/Flow | 0.6-0 to 1.5 MPa 20L/Min |
| Cooling Water Temperature | <400 C |
| Weight | 34.5㎏ |
| Size | 520×225×415mm |
ABE-25AB
ABE-25AB Induction Heating Machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering and Soldering process for various Hand Tools and Auto Components.
An Induction Heating Machine uses electromagnetic induction to generate heat in conductive materials, enabling fast, efficient, and precise heating for applications like brazing, hardening, and metal forging.
| TECHNICAL CHARACTERISTICS AND FEATURES | ||
|---|---|---|
| Model | ABE-40AB | |
| Input Voltage Range | 380V-425V AC | |
| Output Power | 40 KW | |
| Rated Power | 40 KW | |
| Output Oscillation Frequency | 20-100KHZ | |
| Heating Current Range | 380-1800A | |
| Retaining Current Range | 380-1800A | |
| Heating Time | 1-99 Sec | |
| Retaining Time | 1-99 Sec | |
| Cooling Time | 1-99 Sec | |
| Duty cycle | >90% (40℃ room temperature) | |
| Cooling Water | 0.20-0.5MPa 20L/Min | |
| Cooling water pressure | >1.0MPa | |
| Weight Main part | 42 KG | |
| Size | HF transformer | 35 KG |
| Main part | 620*320*545 mm | |
| HF transformer | 425*315*380 mm | |
| Connecting line length | 1.5 meters | |
ABE-40AB
ABE-40AB Induction Heating Machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering and Soldering process for various Hand Tools and Auto Components.
| TECHNICAL CHARACTERISTICS AND FEATURES | ||
|---|---|---|
| Model | ABE-40AB | |
| Input Voltage Range | 380V-425V AC | |
| Output Power | 40 KW | |
| Rated Power | 40 KW | |
| Output Oscillation Frequency | 20-100KHZ | |
| Heating Current Range | 380-1800A | |
| Retaining Current Range | 380-1800A | |
| Heating Time | 1-99 Sec | |
| Retaining Time | 1-99 Sec | |
| Cooling Time | 1-99 Sec | |
| Duty cycle | >90% (40℃ room temperature) | |
| Cooling Water | 0.20-0.5MPa 20L/Min | |
| Cooling water pressure | >1.0MPa | |
| Weight Main part | 42 KG | |
| Size | HF transformer | 35 KG |
| Main part | 620*320*545 mm | |
| HF transformer | 425*315*380 mm | |
| Connecting line length | 1.5 meters | |
ABE-50AB
ABE-50AB Induction Heating Machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering and Soldering process for various Hand Tools and Auto Components.
An Induction Heating Machine is an advanced heating machine that uses electromagnetic induction to generate heat in metal objects
| TECHNICAL CHARACTERISTICS AND FEATURES | ||
|---|---|---|
| Model | ABE-50AB | |
| Input Voltage Range | 380V-425V AC | |
| Output Power | 50 KW | |
| Rated Power | 50 KW | |
| Output Oscillation Frequency | 20-100KHZ | |
| Heating Current Range | 480-2800A | |
| Retaining Current Range | 480-2800A | |
| Heating Time | 1-99 Sec | |
| Retaining Time | 1-99 Sec | |
| Cooling Time | 1-99 Sec | |
| Duty cycle | >90% (40℃ room temperature) | |
| Cooling Water | 0.20-0.5MPa 20L/Min | |
| Cooling water pressure | >1.0MPa | |
| Weight | Main part | 52 KG |
| HF transformer | 45 KG | |
| Size | Main part | 770*420*650 mm |
| HF transformer | 615*415*480 mm | |
| Connecting line length | 1.5 meters | |
ABE-60AB
ABE-60AB Induction Heating Machine, Used for Various Industrial Applications Like End Heating, Hardening, Tempering and Billet Heating process for various Hand Tools and Auto Components.
| TECHNICAL CHARACTERISTICS AND FEATURES | ||
|---|---|---|
| Model | ABE-60AB | |
| Input Voltage Range | 380V-425V AC | |
| Output Power | 60 KW | |
| Rated Power | 60 KW | |
| Output Oscillation Frequency | 10-20KHZ | |
| Heating Current Range | 480-1800A | |
| Retaining Current Range | 480-1800A | |
| Heating Time | 1-99 Sec | |
| Retaining Time | 1-99 Sec | |
| Duty cycle | >90% (40℃ room temperature) | |
| Cooling Water | 0.20-0.5MPa 20L/Min | |
| Cooling water pressure | >1.0MPa | |
| Weight | Main part | 92 KG |
| HF transformer | 75 KG | |
| Size | Main part | 970*620*650 mm |
| HF transformer | 815*485*680 mm | |
| Connecting line length | 1.5 meters | |
ABE-100AB
ABE-100AB Induction Heating Machine, Used for Various Industrial Applications Like End Heating, Hardening, Tempering and Billet Heating process for various Hand Tools and Auto Components.
| TECHNICAL CHARACTERISTICS AND FEATURES | ||
|---|---|---|
| Model | ABE-120AB | |
| Input Voltage Range | 380V-425V AC | |
| Output Power | 120 KW | |
| Rated Power | 120 KW | |
| Output Oscillation Frequency | 10-20KHZ | |
| Heating Current Range | 480-5200A | |
| Retaining Current Range | 480-5200A | |
| Heating Time | 1-99 Sec | |
| Retaining Time | 1-99 Sec | |
| Duty cycle | >90% (40℃ room temperature) | |
| Cooling Water | 1.20-2.0MPa 80L/Min | |
| Cooling water pressure | >4.0MPa | |
| Weight | Main part | 142 KG |
| HF transformer | 75 KG | |
| Size | Main part | 1800*620*950 mm |
| HF transformer | 815*485*680 mm | |
| Connecting line length | 1.5 meters | |
Gallery
We are well known established manufacturers for Induction Heating/Hardening Machines and Electroplating Rectifiers
ABE-15A
ABE-15AB
ABE-25AB

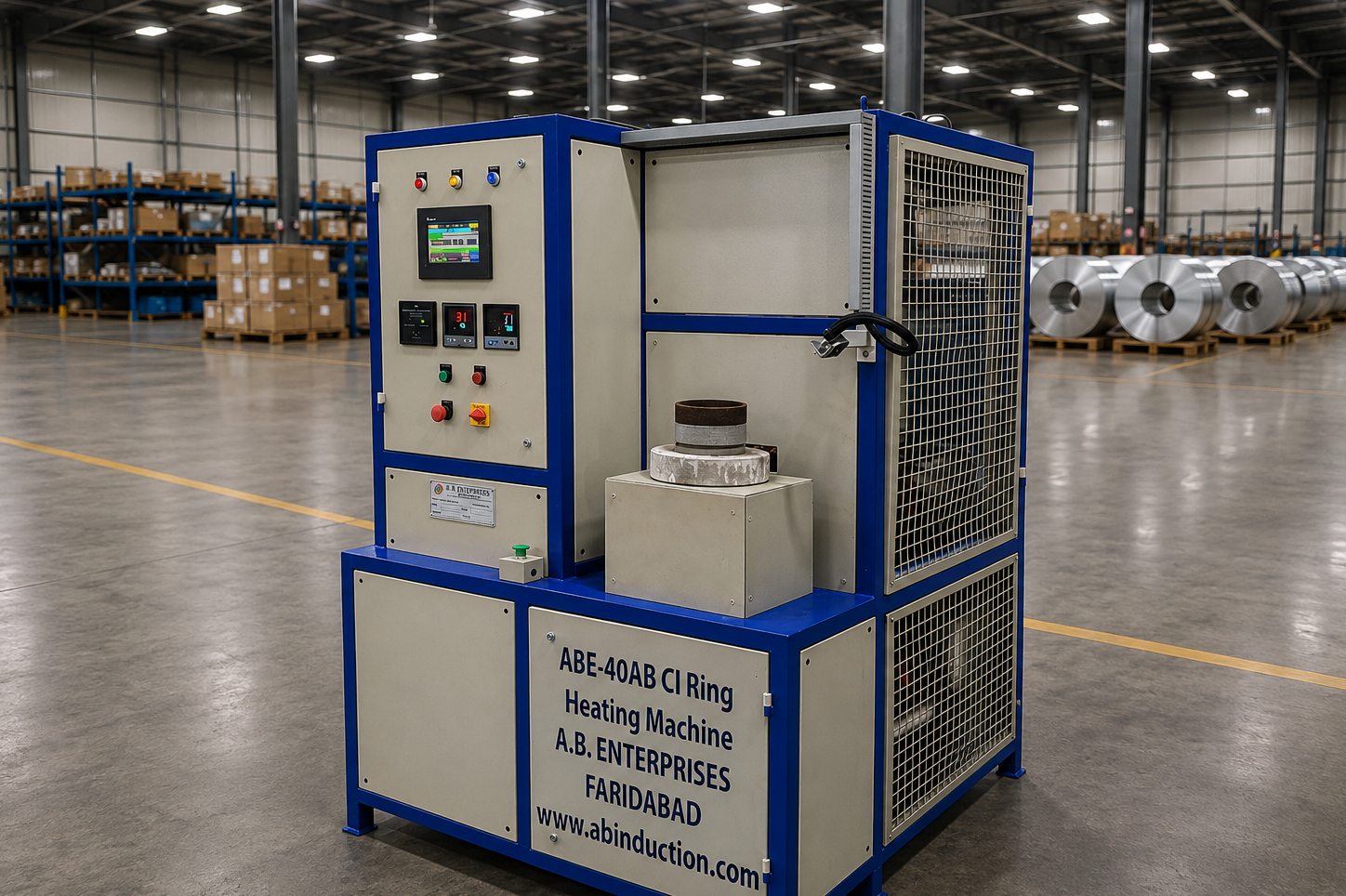

ABE-40AB

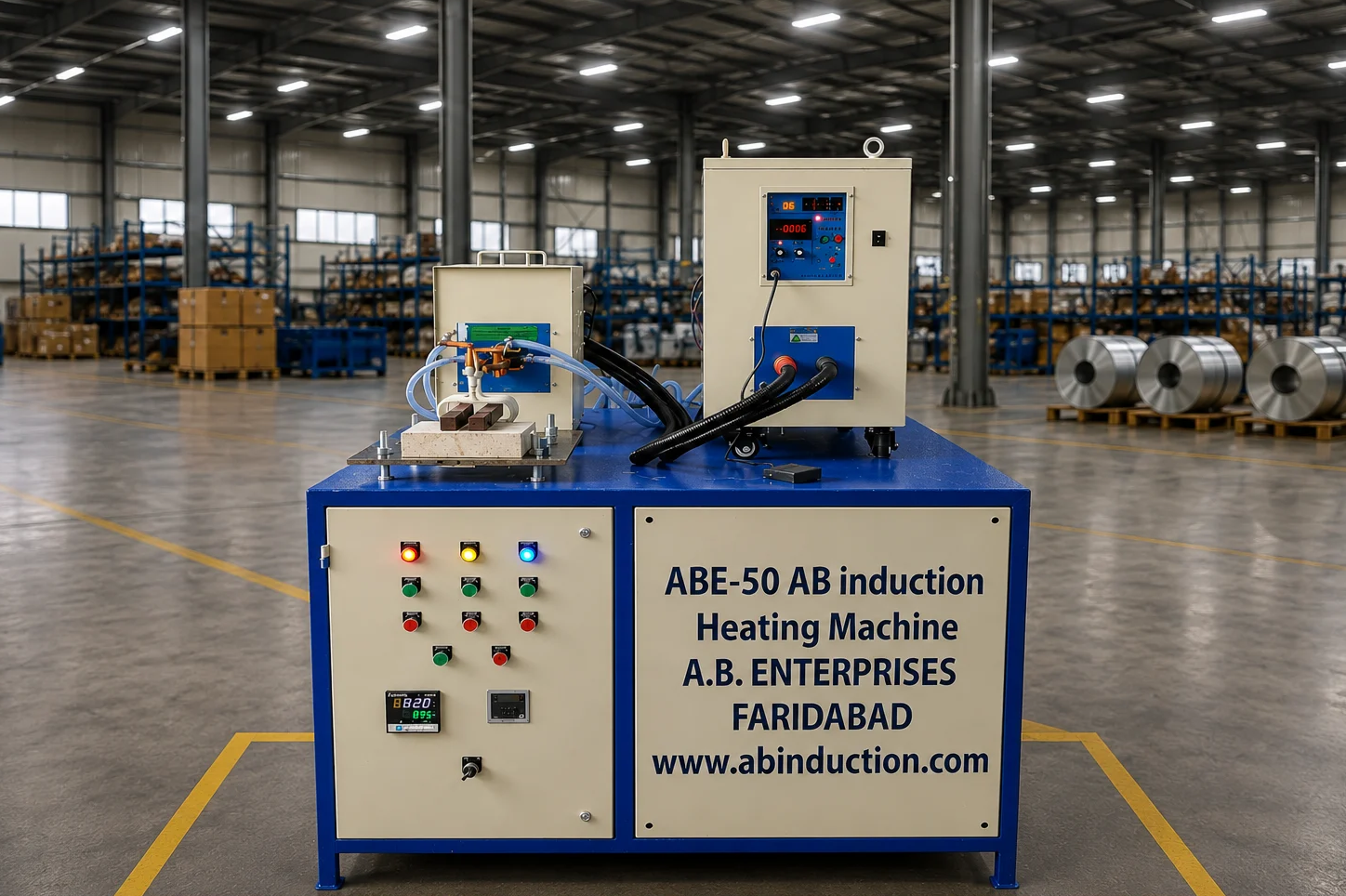

ABE-50AB
ABE-60AB
ABE-100AB
Billet Heater
PLC Controlled Vertical Scanner
Electroplating Rectifier
Double Station Hammer Head Hardening Machine
Fly Wheel Ring Shrink Fitting Machine
Fully Auto CI Ring Heating Machine
Fully Auto Induction Annealing Machine
Induction Hardening Machine
Induction Hardening Machine
PLC Based Vertical Scanner for Shaft Hardening
Drum Heating Machine
