ABE-50AB
ABE-50AB

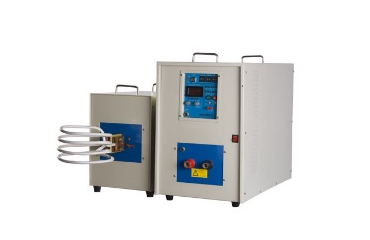

ABE-50AB Induction Heating Machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering, and Soldering process for small components. We can produce customised Automation with a heating machine as per customer application and production requirements with PLC and CNC control. We can further produce a customized System as per your applications.
TECHNICAL CHARACTERISTICS AND FEATURES
| Model | ABE-50AB |
|---|---|
| Input Voltage Range | 380V-425V AC |
| Output Power | 50 KW |
| Rated Power | 50 KW |
| Output Oscillation Frequency | 20-100KHz |
| Heating Current Range | 480-2800A |
| Retaining Current Range | 480-2800A |
| Heating Time | 1-99 Sec |
| Retaining Time | 1-99 Sec |
| Cooling Time | 1-99 Sec |
| Duty Cycle | >90% (40°C room temperature) |
| Cooling Water | 0.20-0.5 MPa 20L/Min |
| Cooling Water Pressure | >1.0 MPa |
| Weight - Main Part | 52 KG |
| HF Transformer | 45 KG |
| Size - Main Part | 770×420×650 mm |
| HF Transformer Size | 615×415×480 mm |
| Connecting Line Length | 1.5 meters |
