ABE-25AB
ABE-25 AB

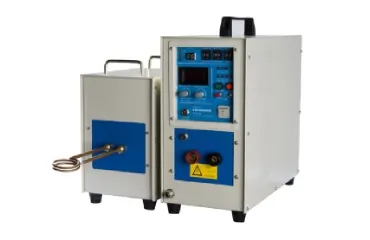

ABE-25AB Induction Heating Machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering, and Soldering processes for various Hand Tools and Auto Components. We can produce customised Automation with a heating machine as per the customer application and production requirements with PLC and CNC control.
TECHNICAL CHARACTERISTICS AND FEATURES
| Model | ABE-25AB |
|---|---|
| Input Voltage | 380V-440V / Three Phase |
| Input Voltage Range | 380-420V |
| Maximum Output Power | 25 KW |
| Duty Cycle | 100% (Constant Current Control) |
| Output Control Mode | Constant Power Control |
| Output Oscillate Frequency | 20-100KHz |
| Resistance Matching Select | 2 |
| Heat Oscillate Current | 300-1200A |
| Retain Oscillate Current | 300-1200A |
| Heating Time | 1-99 seconds |
| Retain Time | 1-99 seconds |
| Cooling Time | 1-99 seconds |
| Weight - Main Part | 52 KG |
| Weight - HF Transformer | 30 KG |
| Size - Main Part | 520×235×460 mm |
| Size - HF Transformer | 320×215×300 mm |
| Duty Cycle Temperature | >100% / 35°C room temperature |
| Cooling Water Pressure/Flow | 0.6-1.5 MPa / 20L/Min |
| Cooling Water Temperature | <40°C |
| Structure | Transformer separated |
| Connecting Line Length | 2 meters |
