ABE-40AB
ABE-40AB Induction Heating Machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering and Soldering process for various Hand Tools and Auto Components.
We can produce customised Automation with Heating Machine as per customer application and production requirements with PLC and CNC control.
| TECHNICAL CHARACTERISTICS AND FEATURES | ||
|---|---|---|
| Model | ABE-40AB | |
| Input Voltage Range | 380V-425V AC | |
| Output Power | 40 KW | |
| Rated Power | 40 KW | |
| Output Oscillation Frequency | 20-100KHZ | |
| Heating Current Range | 380-1800A | |
| Retaining Current Range | 380-1800A | |
| Heating Time | 1-99 Sec | |
| Retaining Time | 1-99 Sec | |
| Cooling Time | 1-99 Sec | |
| Duty cycle | >90% (40℃ room temperature) | |
| Cooling Water | 0.20-0.5MPa 20L/Min | |
| Cooling water pressure | >1.0MPa | |
| Weight Main part | 42 KG | |
| Size | HF transformer | 35 KG |
| Main part | 620*320*545 mm | |
| HF transformer | 425*315*380 mm | |
| Connecting line length | 1.5 meters | |
Gallery
We are well known established manufacturers for Induction Heating/Hardening Machines and Electroplating Rectifiers
ABE-15A
ABE-15AB
ABE-25AB
ABE-40AB
ABE-50AB
ABE-60AB
ABE-100AB
Billet Heater
PLC Controlled Vertical Scanner

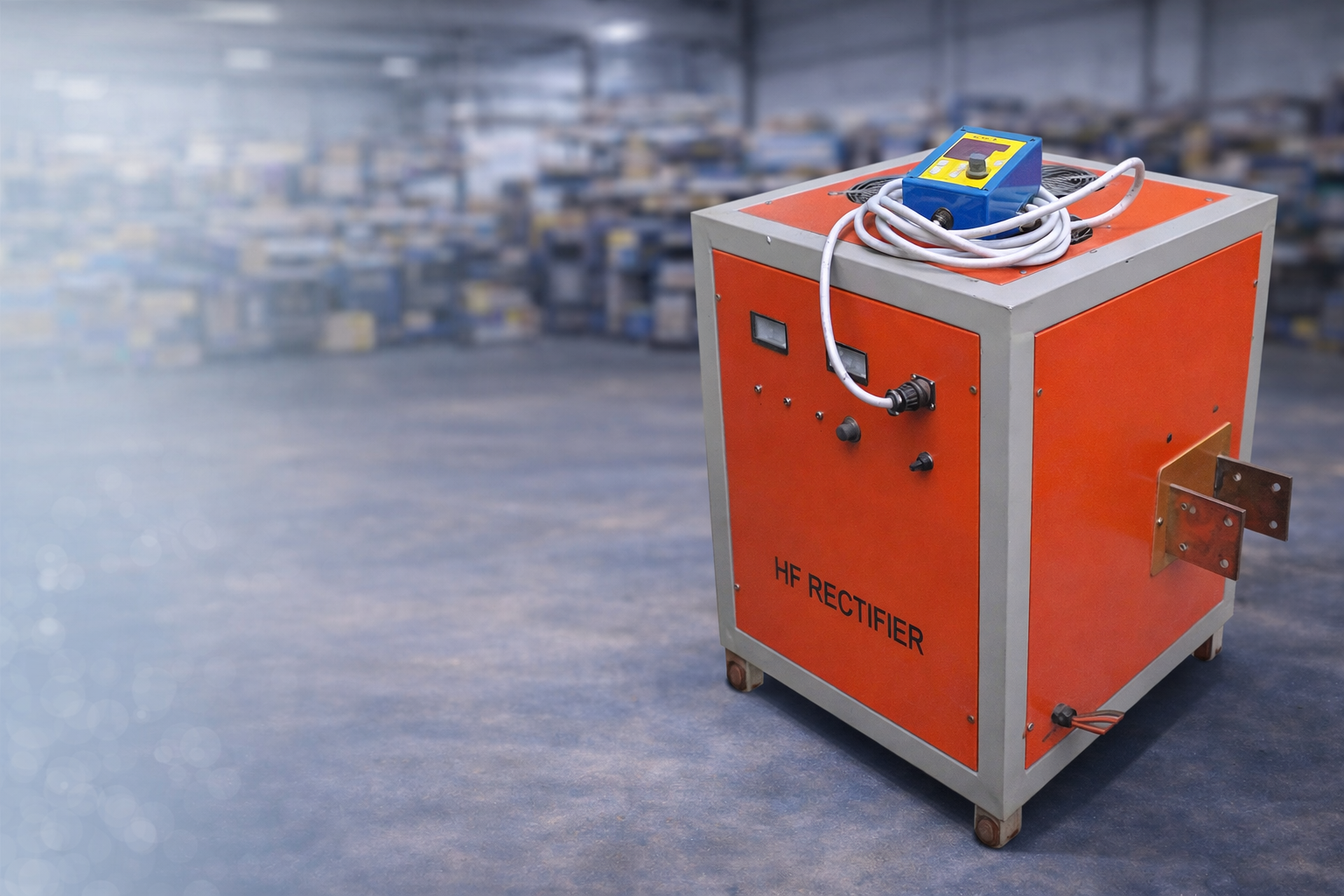

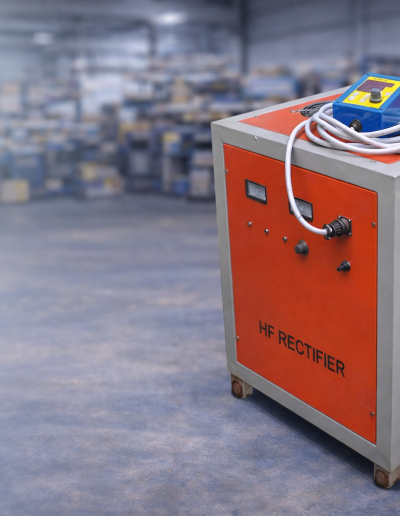

Electroplating Rectifier
