ABE-15АB

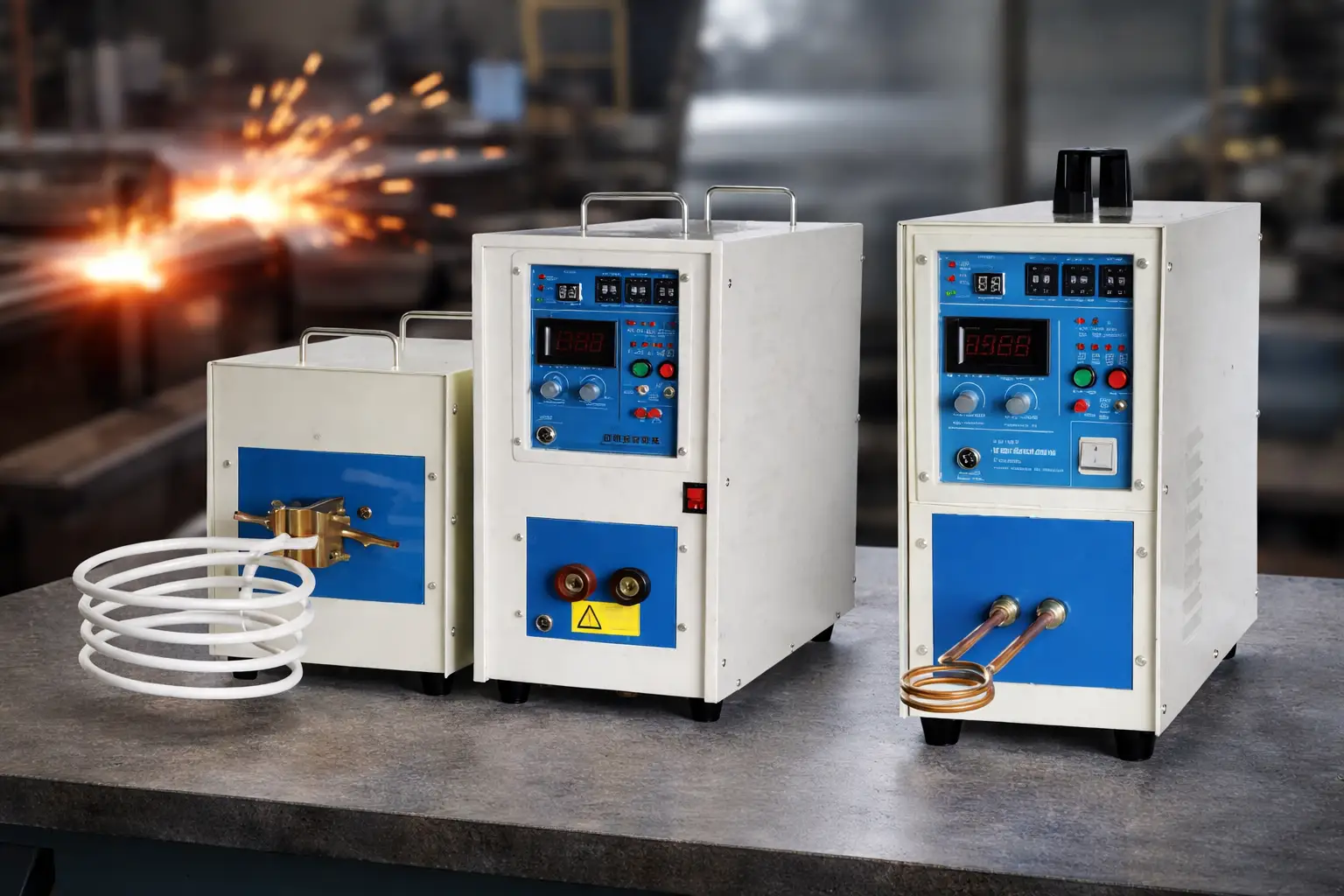

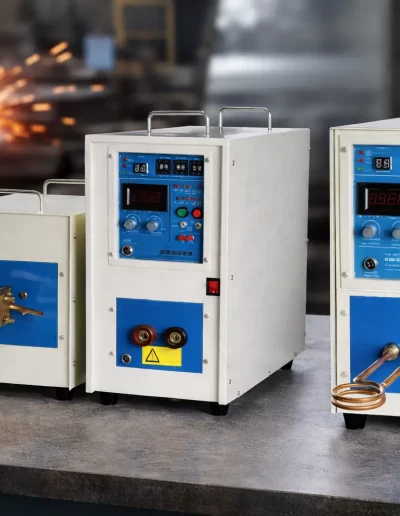

ABE-15АB Induction Heating Machine
ABE-15A Induction Heating Machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering and Soldering process for small components, We can produce customised Automation with Heating Machine as per customer application and production requirements with PLC and CNC control. We can further produce customized System as per your applications.
TECHNICAL CHARACTERISTICS AND FEATURES
| Model | ABE-15A / ABE-15AB |
|---|---|
| Input Voltage | 220V AC 50-60Hz, Single Phase |
| Input Voltage Range | 180V-245V AC |
| Input Current | 32 Ampere |
| Input Watt | 8KW Max |
| Output Oscillation Frequency | 20-100KHz |
| Output Oscillation Current (During Heating Period) | 200-600A |
| Output Oscillation Current (During Retaining Period) | 200-600A |
| Heating Time | 1-99 Sec |
| Retaining Time | 1-99 Sec |
| Cooling Time | 1-99 Sec |
| Duty Cycle | >100% (35°C room temperature) |
| Cooling Water Pressure/Flow | 0.6 – 1.5 MPa, 20 L/Min |
| Cooling Water Temperature | <40°C |
| Weight | 34.5 KG |
| Size | 520×225×415 mm |
