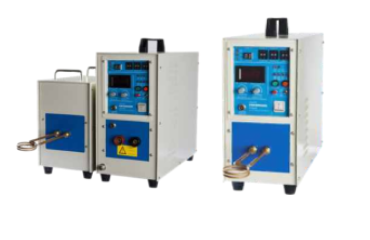

ABE-15A and ABE-15AB

ABE-15A Induction Heating Machine, Used for Various Industrial Applications Like Brazing, End Heating, Annealing, Hardening, Tempering and Soldering process for small components
We can produce customised Automation with Heating Machine as per customer application and production requirements with PLC and CNC control.

TECHNICAL CHARACTERISTICS AND FEATURES
Model	ABE-15A/ABE-15AB
Input Voltage	220V AC 50-60HZ Single Phase
Input Voltage Range	180V-245V AC
Input Current	32 Ampere
Input Watt	8KW Max
Output Oscillation Frequency	20-100KHZ
Output Oscillation Current During Heating Period	200-600A
Output Oscillation Current During Retaing Period	200-600A
Heating Time	1-99 Sec
Retaining Time	1-99 Sec
Cooling Time	1-99 Sec
Duty cycle	>100%(35℃ room temperature)
Cooling Water Pressure/Flow	0.6-0 to 1.5 MPa 20L/Min
Cooling Water Temperature	<400 C
Weight	34.5㎏
Size	520×225×415mm
